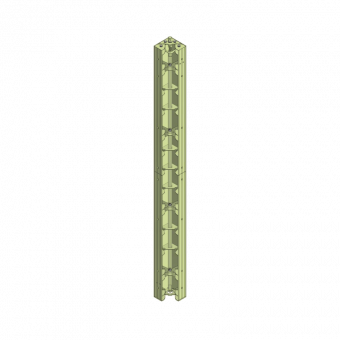

LOGO.3 dismantling inside corner post 25 x 25 x 340 cm

The PASCHAL LOGO.3 dismantling inside corner post 25 x 25 x 340 cm is an inside corner panel of the LOGO.3 formwork.

Measuring 25 x 25 x 340 cm, together with the LOGO.3 inside corner post, it constitutes the inside corner panels for a formwork height of 3.40 m. The dismantling inside corner post is made up of a profiled, high-strength flat steel frame and a steel facing.

• Long-lasting steel facing
• Dismantling clearance of up to 5 cm vis-à-vis the concrete wall
• Fully compatible with all other LOGO formwork systems
• Optimised dismantling procedure - the entire inner core is moved
• Major time savings
• Transponders for clear identification

Application information

The PASCHAL LOGO.3 dismantling inside corner post 25 x 25 x 340 cm allows the inside formwork to be completely dismantled and moved without having to take the individual panels apart.

The LOGO dismantling inside corner post 25 x 25 x 340 cm can be used just like the normal inside corner post and is connected to the formwork panels using wedge clamps. If a plastic filler piece is positioned next to the inside corner post, locking screws or multi clamps are to be used.

How does dismantling work?

The moveable side parts are shifted when the DW screw is turned. It can be turned with a spanner, hammer tip or other bar.

Upon turning, the inside formwork is fully released from the concrete core and can be completely repositioned for the next phase. This ensures huge time savings since the formwork does not have to be taken apart for dismantling.

Extension of the dismantling inside corner post

The integrated connecting screws enable the dismantling inside corner post to be extended to the required height simply and quickly without the need for laborious conversions.

Dismantling clearance of up to 5 cm vis-à-vis the concrete wall

Given the large distance between the facing and the concrete wall, damage is avoided when dismantling. Nails and other fastening materials for the concrete elements no longer come into contact with the facing when dismantling due to the 5 cm clearance.

LOGO dismantling inside corner post impresses in terms of quality and handling

With its steel facing, the LOGO dismantling inside corner post is extremely robust and guarantees a long service life.

Thanks to the integrated crane lifting clamp, the dismantling inside corner post can be ideally moved from one position to the next.

Please refer to the technical information for further system benefits.
