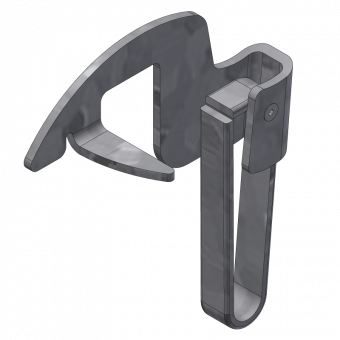

The wooden grinder connector H20/H20 is one of the connecting elements of the PASCHAL slab formwork. It consists of a curved frame, suitable for the chord of the H20 timber girders and a longitudinal clamping device. The integrated tensioning wedge is fixed to the yoke beam chord and the yoke beam and cross beam are thus firmly connected to each other.
Low weight of only 0.7 kg
Quick and efficient assembly and disassembly
Can be fitted at any point on the H20 carrier
Prevents damage to the H20 beams
Secures the cross member against tipping over
Very robust and durable
Application information
The wooden grinder connector H20/H20 is extremely quick and easy to use for connecting yoke and cross beams.
Firstly, you place the frame over the top flange of the yoke beam and attach it flush to the bottom flange of the cross beam. Then all you have to do is insert the elongated clamp on the lower chord of the cross member and hammer it into place.
Enormous time and cost savings
Using the wooden grinder connector H20/H20 not only eliminates the need for the usual nailing work, but the fact that it can be assembled and disassembled at any point also eliminates the need for aligning and positioning as with other common H20 fasteners. This saves you both time and money. In addition, your H20 beams remain undamaged thanks to the wooden grinder connector H20/H20, which means that they can be used more frequently due to the increased service life.
The respective applications, quantities and arrangements of the connecting parts for the PASCHAL slab formwork can be found in the respective technical information.
