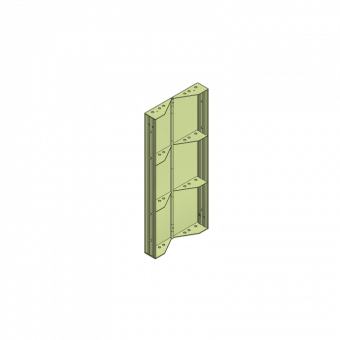

LOGO.3 hinged corner post inside 30 x 30 x 135 cm

The PASCHAL LOGO.3 hinged corner post inside 30 x 30 x 135 cm is a formwork panel from the LOGO.3 formwork range.

Measuring 30 x 30 x 135 cm, the hinged corner post inside together with the hinged corner post outside constitutes the hinged corner posts for the formwork height 1.35 m. The PASCHAL LOGO.3 hinged corner post inside is made up of a profiled, high-strength flat steel frame and a steel facing.

  • Made of durable steel facing and supported by five metal ribs
  • Fully compatible with all other LOGO filler panels and plastic filler pieces
  • Optimised dismantling procedure
  • Folding shaft can be moved as a unit
  • Forming of any wall thickness thanks to plastic filler pieces
  • Major time savings
  • Transponders for clear identification
  • Not more connecting pieces required than with a normal panel joint

Application information

The PASCHAL LOGO.3 hinged corner post inside 30 x 30 x 135 cm enables the systematic forming of oblique-angled corners.

The LOGO.3 hinged corner post is attached to the respective LOGO.3 panels with the LOGO wedge clamp, multi clamp or locking screw. The side length differs from the hinged corner post outside thereby enabling the use of filler panels. As a result, laborious length adjustments are not necessary on the construction site.

Shaft formwork

The LOGO.3 hinged corner post inside 30 x 30 x 135 cm can also be used in a folding shaft. To this end, hinged corner posts are integrated into the corners and wall panels, allowing the entire shaft to be folded inwards and adjusted with a single crane lift.

Stiffening

For angles of 60°, 90° and 135°, the hinged corner post can be secured with a locking bow and stiffened.
The hinged corner post inside is used for angles of 60° to 179°.



Please refer to the technical information for further system benefits.





Leg length: 30 cm
Adjustment range: 60-180 degrees
Fixation: for 60/90/135 degrees
Weight: 46,2 kg
