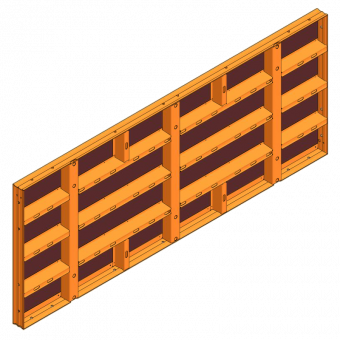

LOGO.3 midi-panel 135 x 340 cm
The LOGO.3 midi-panel 135 x 340 cm is a formwork panel in the PASCHAL LOGO.3 formwork range.
Together with the large-size panels, the midi-panel with its dimensions of 135 x 340 cm acts as the basic panels for a formwork height of 3.40 m. In addition to the extremely strong, profiled flat steel frame, the panel comprises a birch plywood sheet which is supported by seven multifunctional top hat profiles.
- Made of profiled, very strong flat steel
- 15 mm Finnish birch plywood, 11 ply
- Fresh concrete pressure absorption of 70 kN/m² compliant with DIN 18208
- The number of ties is reduced to a minimum
- Positioning options for the tie rod
- Fully compatible with all other LOGO panels
- Safe and rapid connection with the wedge clamp
- Compliance with maximum safety standards thanks to the lateral protection system Secuset
- LOGO.3 is also available in your corporate colours
- Transponders for clear identification
- Vertical and horizontal use for formwork heights of 135 cm and 340 cm
Application information
The PASCHAL LOGO.3 midi-panel 135 x 340 cm is a medium-sized formwork panel which offers numerous advantages when used vertically and horizontally. The integrated clamp holders ensure that connecting pieces are always at hand, and accessories are even quicker to attach.
The LOGO.3 midi-panel 135 x 340 cm has a total of eight possible tie options of which four are on the inner side. Depending on the specific application, the number of ties required can be reduced to a minimum. When used horizontally, the lower tie points are located on the inner side and the upper tie points are on the outer side. When used vertically, all the tie points are on the outside.
Comprehensive occupational safety
Thanks to its ease of use, the lateral protection system Secuset can be installed safely and efficiently on formwork.
LOGO.3 satisfies customer requirements
To increase your recognition value, the PASCHAL LOGO.3 formwork can be produced in your corporate colours on request. In addition, thanks to the PASCHAL ident technology, our transponders uniquely identify each LOGO.3 panel.
Please refer to the technical information for further system benefits.
| Panel width: | 340 cm |
| Panel height: | 135 cm |
| Frame depth: | 12 cm |
| Weight: | 260,0 kg |
| Plywood: | 16 mm thick, 12-ply Finnish birch plywood |
| Max. concrete pressure: | 70 kN/m² according DIN 18218 |
| Tolerances of deflection: | According DIN 18202, table 3, line 6 |
