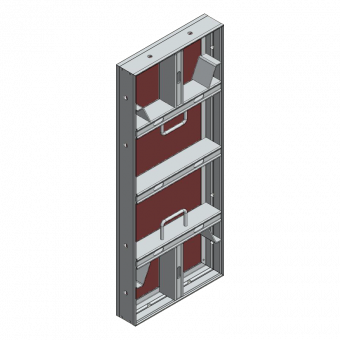

LOGO.alu formwork panel 135 cm

The LOGO.alu formwork panel 135 cm from the LOGO series.

  • Available in a variety of widths
  • Aluminium frame with angle profiles
  • 16-mm-thick, coated birch plywood
  • Maximum fresh concrete pressure of 60 kN/m²
  • Can be used as manual formwork
  • Can be used both for large areas and complex groundplans
  • Fully compatible with LOGO.3 wall formwork for all formwork accessories and connecting pieces

LOGO.alu wall formwork system

The stable aluminium formwork boasts virtually all the advantages of large-size formwork systems. It can also be used for light-weight manual formwork if no crane is available on the site.

Do you need further information?

If you have any questions or require further, more detailed information, please contact our experts by phone or e-mail.

E-Mail kundenservice@paschal.com
Phone
+49 (0) 78 32 / 71-0



Panel width: 55 cm
Panel height: 135 cm
Frame depth: 12 cm
Weight: 24,0 kg
Plywood:  16 mm thick, 12-ply Finnish birch plywood
Max. concrete pressure: 60 kN/m² according DIN 18218
Tolerances of deflection: According DIN 18202, table 3, line 6
