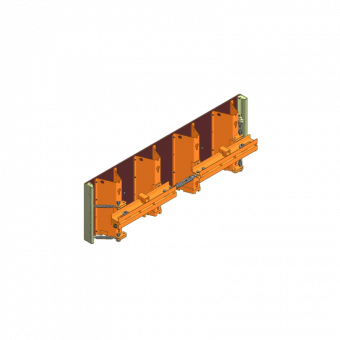

TTK 75 cm formwork segment

The TTR 75 cm formwork segment with clamp connection for shuttering round walls.

  • Available in a variety of segment widths
  • Support structure made of robust sheet steel trapezoidal girders
  • Steel facing for exposed concrete surfaces in perfect concrete quality.
  • Maximum fresh concrete pressure of 60 kN/m²
  • The formwork elements are connected using multi-clamps, thus ensuring top shuttering times

Trapezoidal girder formwork with clamp connection

The TTK is the proven circular trapezoidal girder formwork with an adjustable radius and new edge profile Instead of keybolts, the individual formwork segments are secured using a newly developed connecting clamp. This accelerates the shuttering times on site considerably.

Do you need further information?

If you have any questions or require further, more detailed information, please contact our experts by phone or e-mail.

E-Mail kundenservice@paschal.com
Phone +49 (0) 78 32 / 71-0





Segment width (Inside diameter 5 m - ∞): 230 cm
Segment height: 75 cm
Frame depth: 40 cm (straight condition)
Weight: 184,5 kg
Plywood:  21 mm Finnish birch plywood
Max. concrete pressure: 60 kN/m² according DIN 18218
Tolerances of deflection: According DIN 18202, table 3, line 7
